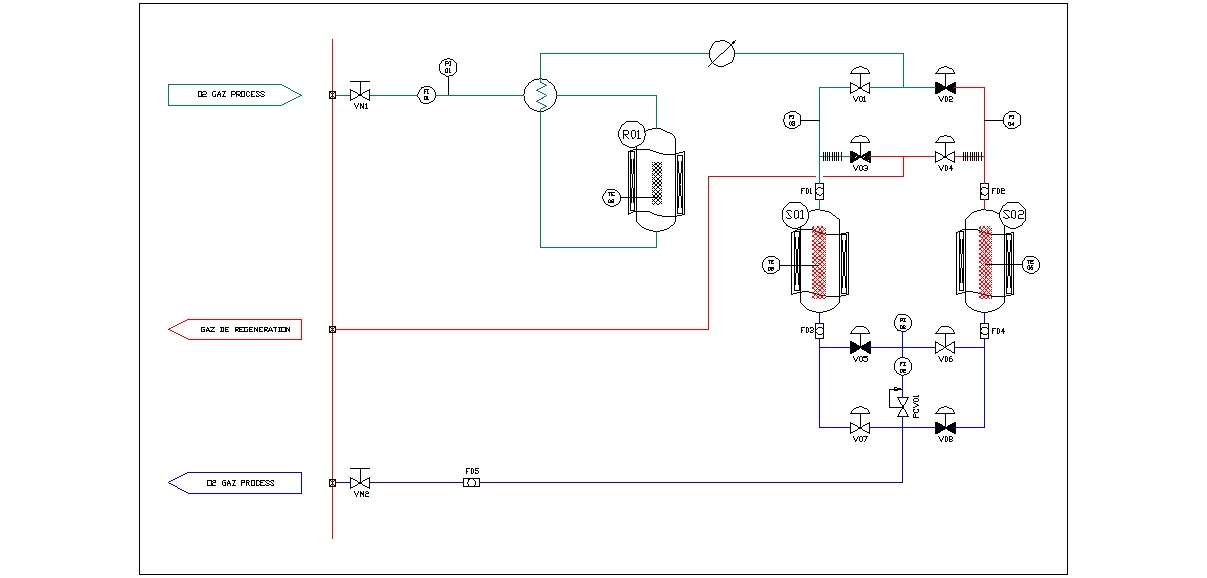

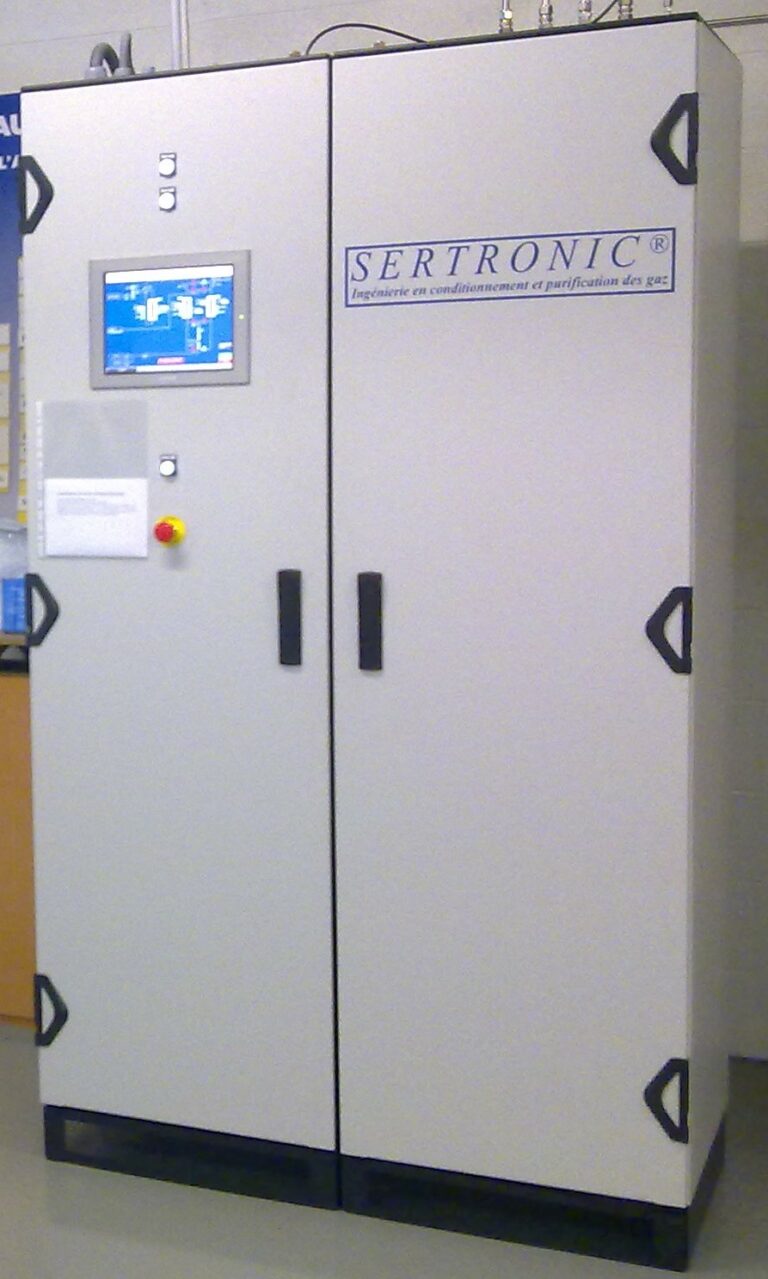

Oxygen and air purifier – Type M
Removed impurities: CH4, CO, CO2, H2O
- Purification process: catalysis + adsorption
- Principle: The gas passes through a special catalyst at high temperature to convert CH4, H2 and CO into H2O which will be trapped by an adsorbent layer.
- Main domain of use: chemical industry, fiber optic, semi-conductor, laboratories, metallurgical industries.
Technical information:
- Flow rate: up to 5 000 Nm3/h
- Pressure: up to 380 barg
- Outlet impurity level: < 10 ppb
- Automatic version (HMI/PLC)

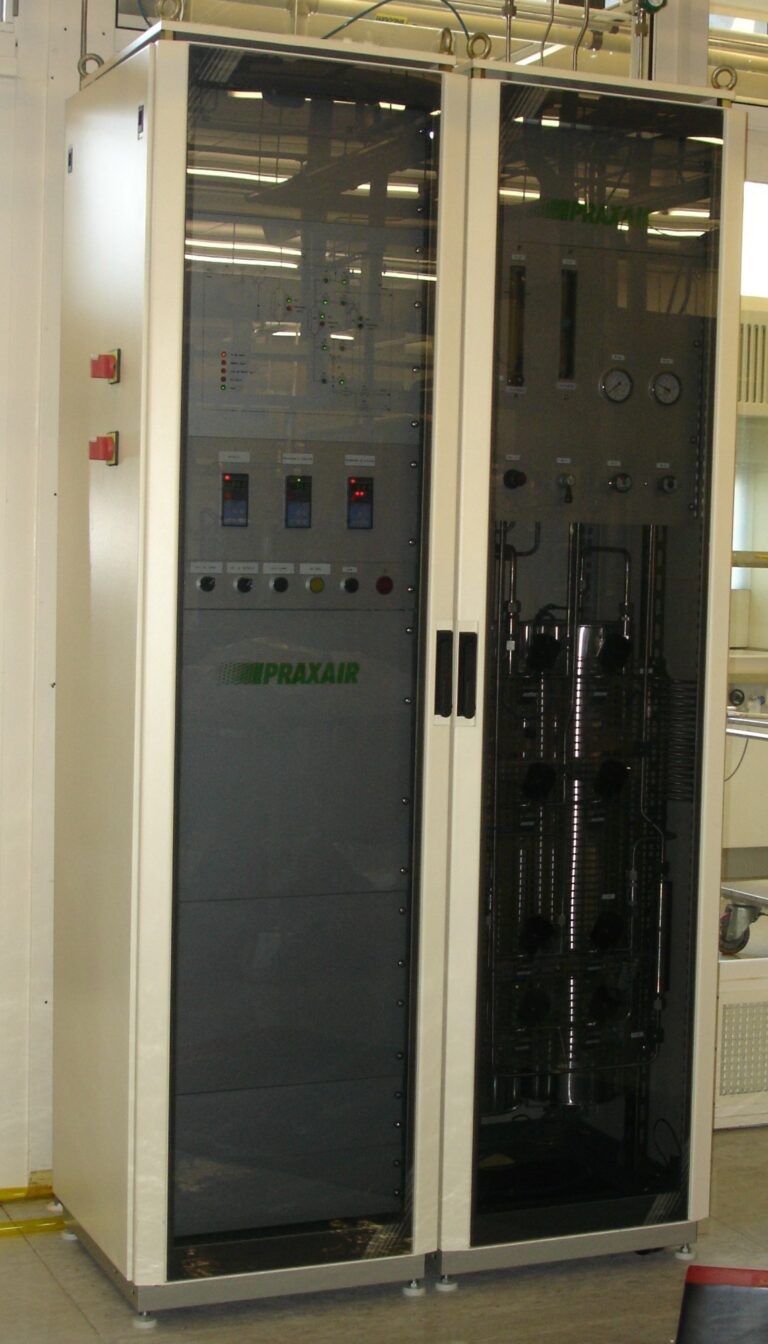

Oxygen & air purifier – Type TSA
Removed impurity: H2O
- Purification process: adsorption
- Principle: The gas passes through an adsorbent layer H2O impurity is trapped.
- Main domain of use: All processes that require dry gas.
Technical information:
- Flow rate: up to 50 000 Nm3/h
- Pressure : up to 380 barg
- Outlet impurity level: less than 10 ppb
- Semi Automatic / Automatic version (HMI/PLC)
